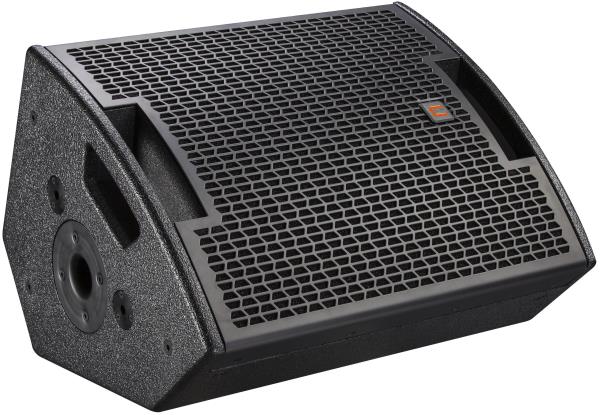

VCM12
COMPACT LOW PROFILE 12" COAXIAL HIGH SPL MONITOR MADE FOR RENTAL
Installation
Features
- Real 400W RMS power capacity (8 hours pink noise)
- Natural sound and incredible holographic reproduction
- Optimized for smooth frequency response in and off axis
- Premium Neodymium custom made European Driver
- Conical 70° HF Horn pattern
- High grade Finnish WISA birch plywood cabinet
- Touring grade soft touch black painting
- Dual monitor angle, for Short of Far Monitoring

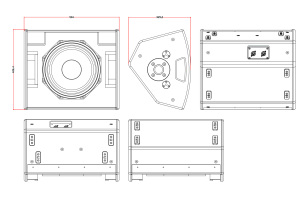

Cabinet Dimensions
Specifications
| Power Capacity (50~15000Hz pink noise 8 hours): | 400W RMS /800W Program |
|---|---|
| Nominal Impedance: | 8ohm |
| Frequency Response (-6dB): | 69Hz - 18kHz |
| Sensitivity: | 100dB/W/m (wideband 200 - 16000Hz) |
| Max Calculated SPL @ 1m: | 126dB continuous / 129dB Program |
| Directivity: | 70º x70º |
| Recommended Low Cut Filter: | 50Hz 24bD/Oct Full Range |

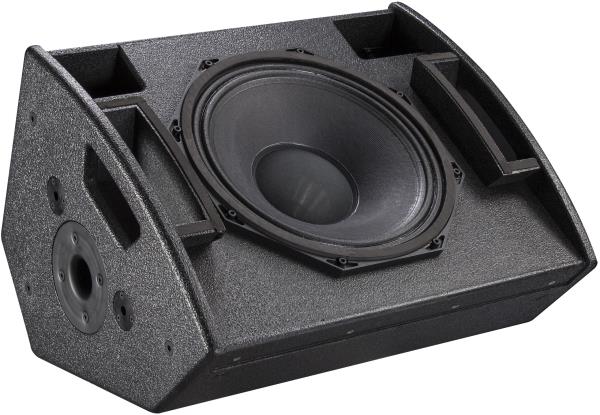

| Low LF Driver: | Custom Celto 12" Neodymium 3" Coil |
| High HF Driver: | Custom Celto 2.8" - 1.5" Exist Neodymium Coil |
| Crossover: | 1400Hz |
| Flying Hardware: | 16 x M8 Poiints |

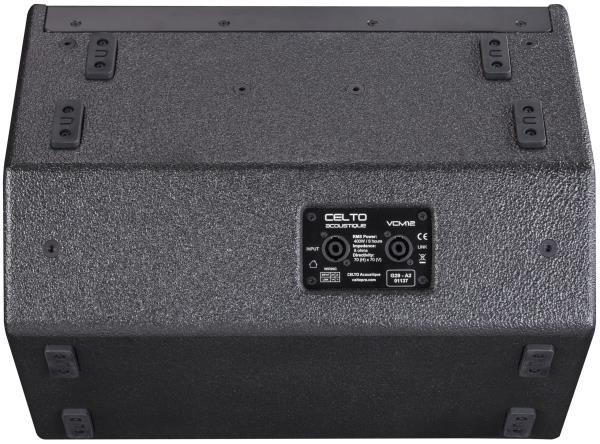

| Connectors: | 2x NEUTRIK Speakon® NL4MP (1+/1- Link, 2+/2- Input & Link) |
| Pole Mount: | 35mm |
| Cabinet | 18mm +15mm Birch Ply, Painted |
| Net Weight: | 16Kg |
| Gross Weight | 20Kg |
| Dimensions (W x D x H): | 504 x 427 x 330mm |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
650 x 500 x 400mm |
| Warranty: | 5 Years |
