UA2000

2 CHANNEL PROFESSIONAL POWER AMPLIFIER 2x1000W/8ohm

Price: $1,999.00
Currently out of stock. Please enquire

Features


  • Housed in a rugged, all-steel 2U chassis
  • Rear panel selection switch for stereo, parallel and bridged modes
  • Rear panel low-cut filter, ground lift and limiter switches
  • Operates within 8Ω and 4Ω loads
  • Innovative heatsink with front to back air flow for efficient cooling
  • Variable fan speed is automatically adjusted by temperature
  • Electronically balanced XLR inputs
  • Touch proof binding post and speakon outputs
  • Precision indented level controls
  • Front panel power switch
  • Protect, peak and signal LED indicators for each channel
  • Amplifier protection includes short circuit, excessive temperature and DC on outputs

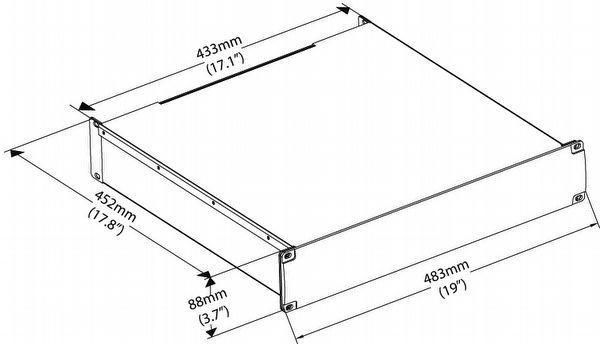

Chassis Dimensions



Specifications


8Ω Stereo RMS Power:
2x1000W
4Ω Stereo RMS Power:
2x1600W
8Ω Bridge Mono RMS Power: 3200W
Frequency Response: 20Hz-20kHz (±.25dB)
Protection: DC, Short Circuit, High Temp, Current Inrush, Input Overload, Output, Soft Start
THD+N (rated power, 4Ω/1kHz): <0.5%
Damping Factor (100Hz at 8Ω):  >800
Standard Input Sensitivity (rated power at 8Ω): 1V
Input Impedance (balanced/unbalanced): 20kΩ/10kΩ
Crosstalk: >75dB
Input Connectors (per channel):
XLR (female) & TRS
Output Connectors (per channel): Speakon (2-way) & Binding Posts
Power Supply (factory configured): 220V-230V 50Hz-60Hz,300VA
Cooling: Two Speed DC Fan (flow front to rear)
Controls: Front Panel: 2 Attenuators, Power Switch Rear Panel: Ground Lift, Mode & Filter
LED Indicators (per channel): Clip, Signal Level, Power
Construction: Steel Chassis, Solid Front Panel
Net Weight:
30.0kg
Gross Weight: 32.0kg
Dimensions (W x D x H): 482 x 452 x 88mm (2RU)
Packaging Dimensions (W x D x H): 550 x 540 x 175mm
Warranty:
5 years

Downloads
