120MA

4 MIC 4 LINE 120W MIXER AMPLIFIER

Price: $620.00
Amount:

Installation

Features


  • Rated power 120W
  • AC and DC Operation
  • Special built-in low cut filter
  • Phoenix speaker output connector for easy installation
  • 4 AUX RCA inputs with inter-lock to avoid cross talk
  • Built-in 2 and 4 tone Chimes
  • Preamp Out and In to insert signal processing equipment
  • Individual front panel input and master volume controls
  • Current limiter, overload, short circuit and thermal protection
  • Selectable priority inputs to duck background music when paging
  • 4 balanced XLR mic inputs, each with phantom power switch

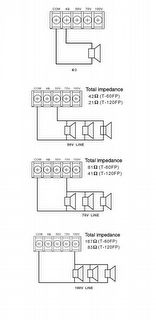

  • Constant voltage 100V, 70V and 50V lines and low impedance 4ohm speaker terminals

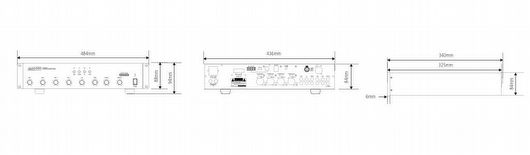

Cabinet Dimensions



Specifications


Rated Power: 120W
Frequency Response (-3dB): 100Hz-17KHz
Signal to Noise Ratio: >68dB
Treble Control: +12dB
Bass Control: +12dB
Mains Power: 240V AC 50Hz
Line RCA Connectors: 4
Mic Input Connectors: 4
Net Weight: 12.5Kg
Gross Weight: 17.0Kg
Dimensions (W x D x H): 484 x 367 x 88mm
Packaging Dimensions 1pcs/pack:
(W x D x H)
510 x 540 x 190mm


Downloads

120MA.pdf120MA.pdf

File Size: 657kB
