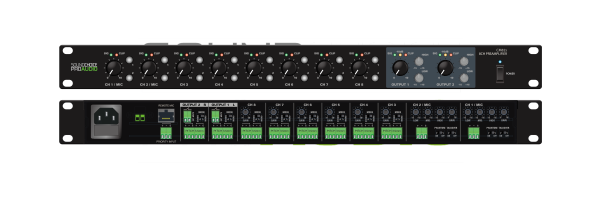

CM82S
2 MIC / 6 LINE INPUT BALANCED INPUTS 2 ZONE MATRIX STEREO OUTPUT MIXER 1RU
Features
- Inputs 1-2 Microphone inputs Phoenix
- Inputs 1-2 Talkover, Phantom power, EQ adjustment
- Input 3-8 Line inputs Phoenix
- Input front panel volume controls
- Output Channel selectors
- Master Treble and Bass
- Master Volume controls
- Priority Input - Mutes all input signals
- PRIORITY MUTE CONTACT - Completely mutes the output channel when the contact closure terminals are shorted.
- MODE - Rear panel switches the input between mono and stereo modes
- Input RJ45 for optional Paging Microphone (RWP4) with priority and Chime
Specifications
| Inputs: | 2 Mic, 6Line |
|---|---|
| Output: | 2 x Phoneix |
| Treble Control: | +15dB |
| Bass Control: | +15dB |
| Mains Power: | 240V AC 50Hz |
| Mono/Stereo: | Push button selectors allow routing for each input channel |
| Phantom Power: | Microphone channels |
| Net Weight: | 3.46Kg |
| Gross Weight: | 4.7Kg |
| Dimensions (W x D x H): | 482 x 320 x 44mm |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
535 x 410 x 140mm |
| Warranty: | 5 Year |
