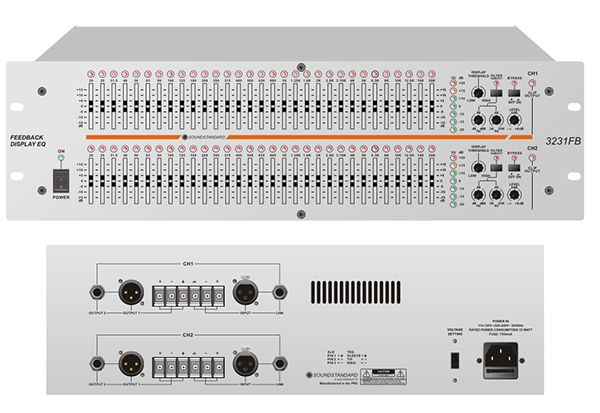

3231FB
DUAL 31 BAND 1/3 OCTAVE GRAPHIC EQUALISER WITH BAND CLIP INDICATORS
Features
- Two independent 31-band 1/3 octave graphic equalisers
- Individual band clip indicators
- Multi-colour LED output level meters (-20 to +20dB)
- Low cut filters - adjustable 40Hz to 400Hz
- High cut filters - adjustable 3kHz to 20kHz
- Output clip indicators
- Input gain controls
- Bypass switches
- Balanced XLR, ¼"TRS, screw terminal inputs and outputs
Chassis Dimensions
Specifications
| Signal to Noise (A weighted): | >95dB |
|---|---|
| Frequency Response: | 20Hz-20kHz (±0.5dB) |
| THD%: | <0.01% |
| Centre Frequency Accuracy: | <±1.5% |
| Input Filter: (High Cut/Low Cut): | 3kHz-20KHz/40Hz-400Hz Sweepable |
| Input Gain: | -∞ to +6dB |
| Boost/Cut Range: | ±15dB |
| Dynamic Range: | 118dB |
| Indicator: | Power, Output Clip, Filter, Output Level Individual Band Clip |
| Input Impedance: | 20kΩ (balanced) 10kΩ (unbalanced) |
| Output Impedance: | 300Ω (balanced) 150Ω (unbalanced) |
| Input Connectors: | 2 (XLR) + 2 (TRS) + Terminal Strip |
| Output Connectors: | 2 (XLR) + 2 (TRS) + Terminal Strip |
|
Power Consumption: |
15W |
| Power (External Plug Pack): | AC 2x18V 500mA |
|
Net Weight: |
3.9kg |
|
Gross Weight: |
6.7kg |
| Dimensions (W x D x H): | 483 x 173 x 132mm (3RU) |
| Packaging Dimensions (W x D x H): | 585 x 260 x 170mm |
| Warranty: | 1 Year |
