R6R12A

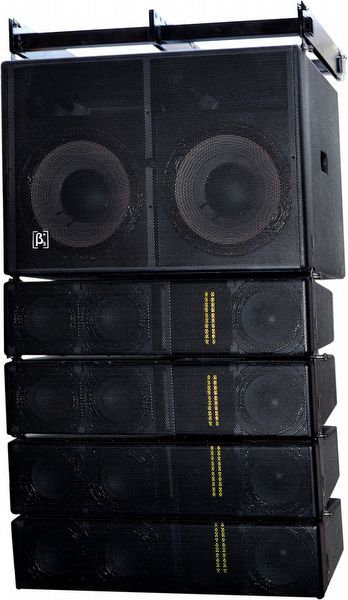

3000W POWERED COMPACT LINE ARRAY SYSTEM (BLACK)
| Price: | $12,654.00 |
|---|---|
| Currently out of stock. Please enquire | |
Installation
Features
- Each system comes complete with 1 subwoofer, 4 mid-high line array cabinets, all rigging hardware and connecting speaker cables
- Compact design for medium scale sound reinforcement
- Internal amplification, and programmable DSP control (via USB and RS232 port) - gain, crossover, equalisation, compressor/limiter, and time alignment. Software included
- Rear panel peak level indicator, level control
- Flown or ground stack options
- Two 12" low frequency drivers (R12A module)
- Three 6" mid frequency drivers and one high frequency ribbon driver in each R6 line array module
- 100º controlled horizontal coverage
- Splay angle adjustable in 1º steps
- 2 x Speakon connectors on each array cabinet
- Black polyurethane finish with powered coated grill
- Mechanically connected cabinet design with three-point suspension system allowing flexibility in a variety of array configurations

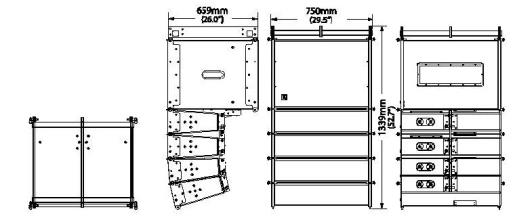

Cabinet Dimensions
Specifications
| R6 Mid/High: |
|
|---|---|
| Transducers: |
Low Frequency: 2 x 6" Mid Frequency: 1 x 6" High Frequency:1 x Ribbon |
| Frequency Response (-3dB): | 80Hz-19KHz |
| Sensitivity (1W/1m): | 91dB |
| Crossover: | Passive Full Range |
| Dispersion (H x V): | 100º x 30º |
| Rated Power (RMS): | 140W |
| Rated Impedance: | 8ohm |
| Maximum SPL: | 115dB, 121dB Peak |
| Cabinet: | 15mm Birch Plywood |
| Input Connectors: | NL4 x 2 |
| Net Weight: | 17Kg |
| Gross Weight: | 19Kg |
| Dimensions (W x D x H): | 730 x 363 x 174mm |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
830 x 450 x 230mm |
| R12A Subwoofer: | |
| Transducers: |
Low Frequency: 2 x 12" |
| Frequency Response (-3dB): | 40Hz-300KHz |
| Sensitivity (1W/1m): | 92dB |
| Power Amplifier: | 3000W |
| DSP: | Internal via USB |
| Maximum SPL: | 122dB, 128dB Peak |
| Cabinet: | 18mm Birch Plywood |
| Fly frame: | Rated for two system hang |
| Net Weight: | 53Kg |
| Gross Weight: | 59Kg |
| Dimensions (W x D x H): | 736 x 667 x 542mm |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
815x 656 x 876mm |
| Warranty: | 5 Years |
