MIXX16
DIGITAL MIXER 16 MIC 6 AUX 2 MASTERS, WIFI, DIGITAL EFFECTS AND PROCESSING

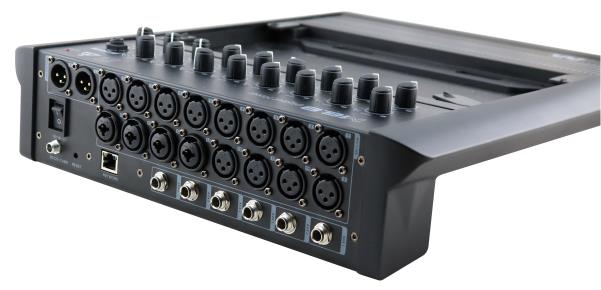

Panel Layout
Features
-

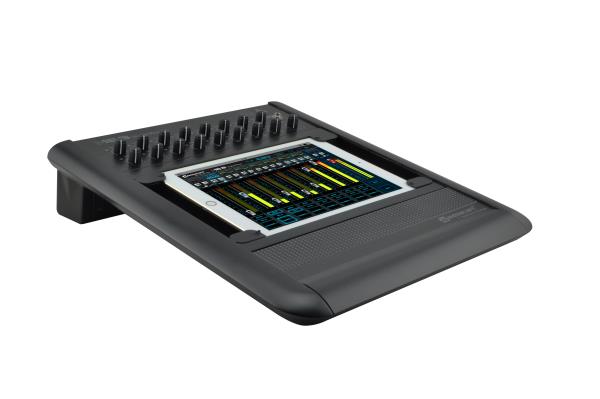

IPad or Tablet software control
-
16 balanced mic/line inputs
-
Input gain trim on all input channels
-
4-band input channels PEQ
-
6 Aux sends on all input channels
- Builtin global Digital Effects sends on all input channels
- Builtin compressor, gates
-
Main L & R output master
-
Switchable +48V phantom power per channel
-
Pan on all input channels including effects
- Builtin WiFi
-
Headphone jack for monitoring with PFL
DO NOT PUSH RESET WITHOUT CONTACTING SCPA FIRST!
Apple Software search - MIXX16
MAKE SURE YOU HAVE CONNECTED TO THE MIXX16 WiFi IN SETUP ON YOUR DEVICE
IP: 10.10.100.254
PW: 12345678
The IP address and Password are fully customisable. Login using your wed browser and IP address.
Specifications
| Mono Inputs (balanced): | 16Mic (XLR)/Line (TRS) |
|---|---|
| Aux Sends (balanced): | 6(TRS) |
| Main Out (balanced): | Left & Right (XLR) |
| Stereo Headphones: | 1 (TRS) |
| Mic Input Impedance: | 2kO |
| Line Input Impedance: | 30kO |
| Line Max Input Signal: | 30dBu |
| Main Output Max Level: | 21dBu |
| S/N Ratio (all channels assigned 20dB gain): | 120dB |
| Frequency Response: | 20Hz to 20kHz |
| Phantom Power: | +48V |
| Sample Frequency: | 48kHz |
| Effects A/D and D/A Converters: | 24bit Delta Sigma |
| Net Weight: | 4.2kg |
| Gross Weight: | 11.5kg |
| Dimensions (W x D x H): | 359x 411 x 85.5mm |
| Packaging Dimensions (W x D x H): | 415 x 500 x 150mm |
| Warranty: | 2 Year |
