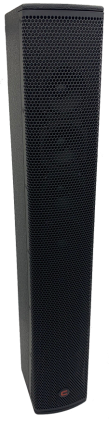

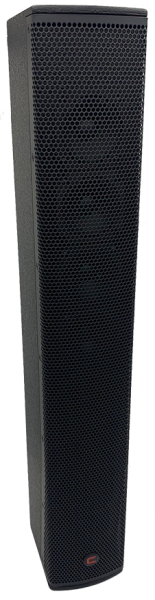

CCL830B
8x3" COLUMN ARRAY 240W 6ohm SPEAKER BLACK
| Price: | $1,100.00 |
|---|---|
| Currently out of stock. Please enquire | |
Installation
Features
- A vertical line array of 8 x 3" full range transducers
- High fidelity sound
- Passive configuration
- 100º x 25º controlled coverage pattern
- Designed for high speech intelligibility and natural sounding music
- Suitable for use as a main system with or without subwoofer augmentation
- Optional range of brackets included with multiple mounting points provided
- Permanent installation (wall, ceiling, under balcony) or portable system
- Optional - mounting hardware for coupling speakers together
- The use DPA260P+ for EQ filters (see filter PDF below) is recommended
Cabinet
Specifications
| Transducers: | 8 x 3" |
|---|---|
| Frequency Response (-3dB): | 150Hz-18KHz |
| Sensitivity (1W/1m): | 100dB |
| Dispersion (H x V): | 100º x 25º |
| Rated Power (RMS): | 240W |
| Rated Impedance: | 6ohm |
| Input Connectors: | 1 x 4Pin Phoenix |
| Net Weight: | 6.00Kg |
| Gross Weight: | 9.00Kg |
| Dimensions (W x D x H): | 160 x 122 x 788mm |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
177 x 215 x 843mm |
| Warranty: | 5 Years |
