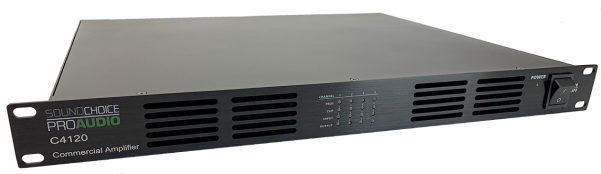

C4120
4 x 120W 100V 8ohm 1RU AMPLIFIER
Installation
Features
- Rated power 4 x 120W 100v 8ohm Class-D
- 1RU rack space
- Special built-in 70Hz high cut on/off switch per channel
- Phoenix input and speaker output connectors for easy installation
- Individual rear panel master volume controls
- Separate front panel indicator leds for protection, clip, input and output
- Current limiter, overload, short circuit and thermal protection
- Built-in auto standby feature to save power consumption
Cabinet Dimensions
Specifications
Rated Power: | 4 x 120W 100v or 8ohm |
---|---|
Frequency Response (-3dB): | 20Hz-20KHz |
Signal to Noise Ratio: | >80dB |
Mains Power: | 230V AC 50Hz |
Line Input Euro Block Connectors: | 4 x In |
Speaker Output Euro Block Connectors: | 4x Out |
Net Weight: | 6.5Kg |
Gross Weight: | 7.5Kg |
Dimensions (W x D x H): | 482 x 420 x 44mm |
Packaging Dimensions 1pcs/pack: (W x D x H) |
610 x 560 x 130mm |
