DT2000

2 CHANNEL PROFESSIONAL POWER AMPLIFIER 2x1000W/8ohm CLASS D 2RU

Price: $1,999.00
Amount:

Features



  • Class D
  • Housed in a rugged, all-steel 2U chassis
  • Rear panel selection switch Sensitivity 0.775V, 1V, 32dB
  • Rear panel limiter switch, Link switches
  • Operates within 8Ω and 4Ω loads
  • Innovative heatsink with front to back air flow for efficient cooling
  • Variable fan speed is automatically adjusts by temperature
  • Electronically balanced XLR inputs
  • Speakon output connectors
  • Precision indented level controls

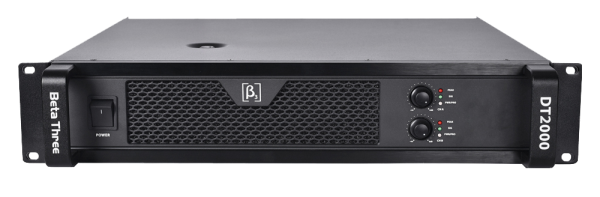

  • Front panel power switch and volume controls
  • Protect, peak, signal and power protect LED indicators for each channel
  • Amplifier protection includes short circuit, excessive temperature and DC on outputs

Chassis Dimensions





Specifications



8Ω Stereo RMS Power:

2x1000W

4Ω Stereo RMS Power: 2x1500W


Frequency Response: 20Hz-20kHz (±.2dB)

Protection: DC, Short Circuit, High Temp, Current Inrush, Input Overload, Output, Soft Start

THD+N (rated power, 8Ω/1kHz): <0.1%
Damping Factor (100Hz at 8Ω):  >500
Standard Input Sensitivity (rated power at 8Ω): 1V
Input Impedance (balanced/unbalanced): 20kΩ/10kΩ

Crosstalk: >75dB
Input Connectors (per channel):

XLR (female)

Output Connectors (per channel): Speakon

Power Supply (factory configured): 220V-230V 50Hz-60Hz,300VA

Cooling: Two Speed DC Fan (flow front to rear)

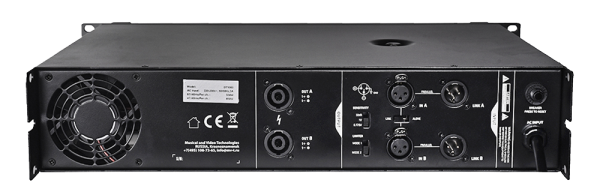

Controls: Front Panel: 2 Attenuators, Power Switch Rear Panel: Ground Lift, Mode & Filter

LED Indicators (per channel): Clip, Signal Level, Power

Construction: Steel Chassis, Solid Front Panel

Net Weight:
16.0kg
Gross Weight: 17kg
Dimensions (W x D x H): 482 x 279x 88mm (2RU)
Packaging Dimensions (W x D x H): 590 x 455 x 165mm
Warranty:

5 years
