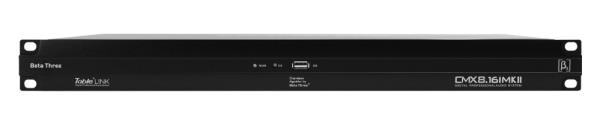

CMX 8.16I
8x16 DSP MATRIX MIXER 8 PRESET PROCESSOR AUDIO SERVER TC/IP
Dynamic Audio Server
Chameleon series dynamic audio servers, using new audio processing and transmission technology, precipitation Beta Three years of professional audio application experience, set a number of new technologies in one, can be widely used in a variety of large venues, to meet the theater, concert halls, remote video conferencing, stadiums, churches, conference rooms, theme parks, public sound reinforcement systems and other aspects of the application needs. The TableLink transmission protocol supports the new standard AES67+AES70 and is compatible with the popular AoIP protocol, making interconnection more convenient and business freer. The new Chameleon series has a high sampling rate of 192KHz and a channel count of up to 256. It adopts digital processing and network transmission architecture, which can transmit audio signals with high quality lossless and more efficiently and truly achieve close to lossless transmission. The equipment can be connected through the network, which is more intelligent, convenient and fast in use and maintenance.
Software
Features
- Suitable for use where a high quality 16x16 matrix mixer is required
- 16 channels of balanced microphone/line input, 16 channels of balanced output
- Built-in digital equalization, frequency division, voltage limit and other processing functions
- Intuitive and graphical software control interface, integrated Wi-Fi connection, cross-platform compatibility, support ios, Android, Windows, Mac OS, etc
- Support 256 channels of network channel processing and 16 channels of full-function signal processing
- With USB, playback or storage recording
- Support custom scene preset function
- Built-in automatic camera tracking function, RS-485 camera control port
- Automatic protection memory function when power off
- Grouping control function, channel copying, pasting, joint control function
- External interface: RS232RS485GPIO network port optical USB
- ADEC Active Distributed Echo Processing
- ANC New Generation Automatic Noise Reduction Control
- ADFC Active Dynamic Feedback Suppression
- Built-in Digital Intelligent Automatic Mixing
- Adaptive POE External Panel Touch Panel or Button panel options available
- TableLink transmission protocol, support remote control management
- Software and Control Connections via TC/IP
Specifications
| Inputs Connectors: | 16 (Phoenix) |
|---|---|
| Outputs Connectors: | 16 (Phoenix) |
| Number of GPIO: | 8 x configurable input and output |
| Output Impedance: |
100-ohm balance, 50-ohm unbalance |
| Input impedance: | 20k-ohm balance, 10k-ohm unbalance |
| Maximum output gain |
18dBu |
| Channel isolation: | 104dB |
| A/D Dynamic range: | 120dB |
| Sampling rate: | 48KHz/24bit |
| Phantom: | 48V |
| Number of USB: |
2 Supports recording and playback |
| Frequency Response: | 20Hz - 20Khz +/- 0.25dB |
| Power supply: | AC 110V/220V 50Hz/60Hz |
| Operating Temperature: | -10 to 50c |
| External Connection | TC/IP |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
525 x 310 x 95mm |
| Dimensions (W x D x H): | 482 x 258 x 44.5mm (1RU) |
| Net Weight: | 3.8kg |
| Gross Weight: | 4.3kg |
| Warranty: | 5 Year |
