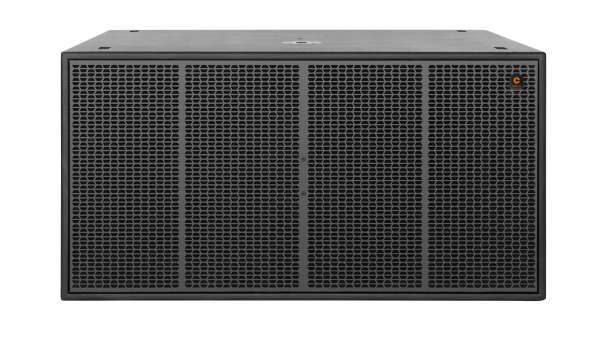

ACS218

HIGH POWER 6000W POWERED DUAL 18 WITH DSP; SUBWOOFER OPTIMIZED FOR INTEGRATION WITH ACS10 SATELLITE CURVATURE SYSTEM

High output SPL and sensitivity
Custom 18” die cast woofers with 4” PI grade voice
coil and KEVLAR loaded Canadian pulp cone
Integrated 6000W Peak Class D amplifier with DSP
processing

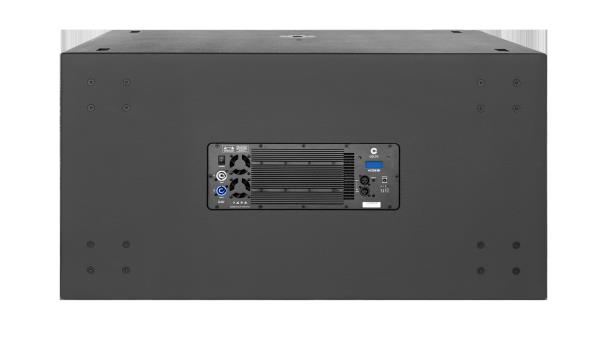

Neutrik PowerCon input and output power supply connectors
XLR Line input and output
Optimized for seamless integration with ASC10 satellite curvature system
Heavy braced CNC birch plywood cabinet with
touring grade rubberized PolyUrea coating
Portable system or for permanent installation (floor only)

Transducers:	Low Frequency: 2x18"
Frequency Response (-3dB):	30Hz-95KHz
Max SPL:	139dB
Rated Power (RMS):	3000W
Rated Impedance:	4ohm
Input Connectors:	XLR
Net Weight:	83.0Kg
Gross Weight:	92.0Kg
Dimensions (W x D x H):	580 x 740 x 1100mm
Packaging Dimensions 1pcs/pack: (W x D x H)	680 x 850x 1220mm
Power Draw:	600W - 1/8 Rated Output

Warranty:	5 Years
