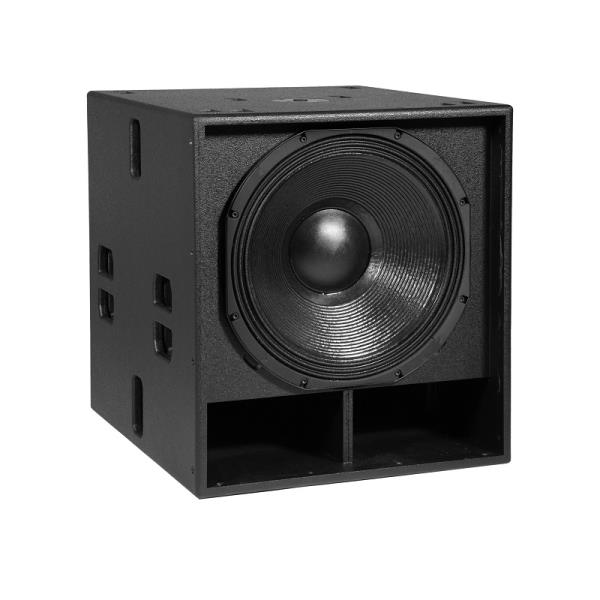

CSW118
-big.jpg)
HIGH PERFORMANCE 18" 1300W SUBWOOFER
Installation
Features
- 1300W RMS power capacity (8 hours pink noise)
- Clean and deep reproduction
- Premium custom made European Driver
- Heavy braced, vibration free birch plywood cabinet
- Touring grade soft touch gloss-free black painting
Cabinet Dimensions
Specifications
| Power Capacity (50~15000Hz pink noise 8 hours): | 1300W RMS |
|---|---|
| Nominal impedance: | 8 Ohm |
| Frequency response (-6dB half space, no EQ): | 34~1500Hz |
| Average Sensitivity: | 97dB/ 1W / 1m (40~150Hz) |
| Maximum Calculated SPL @ 1m: | 128dB RMS / 131dB Peak |
| Nominal Directivity (-6dB): | Omidirectional in usable range |
| Recommended low cut filter: | 30Hz 24dB/oct |
| Low Frequency driver: | 18" CELTO ACOUSTIQUE 18EX1400, 4" / 100mm long throw |
| Crossover: | No, only use in active mode with external electronic crossover |
| Flying hardware: | No |
| Connectors: | 2x NEUTRIK Speakon® NL4MP (1+/1- Input & Link, 2+/2- Link) |
| Pole mount: | 20mm thread top hat |
| Cabinet: | CNC made with tongue and grove assembly,all made with 18mm birch plywood |
| Finish: |
Black Textured Waterborne Coating |
| Dimensions (W x D x H): | 570 x 632 x 650mm |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
675 x 735 x 750mm |
| Net Weight: | 44Kg |
| Gross Weight: | 51Kg |
| Warranty: | 5 Years |
