| Power Capacity (50~15000Hz pink noise 8 hours): |
300W RMS /1200W Peak |
| Nominal Impedance: |
8ohm |
| Frequency Response (-6dB): |
90Hz - 22kHz |
| Sensitivity: |
97dB/W/m (wideband 200 - 16000Hz) |
| Max Calculated SPL @ 1m: |
121dB continuous / 127dB Peak |
| Directivity: |
75º x75º |
| Recommended Low Cut Filter: |
110Hz 24bD/Oct with iFix13S |
| Low LF Driver: |
Custom Celto 10" Ferrite 2.5" Coil |
| High HF Driver: |
Custom Celto 1" 1.7" Titanium Diaphragm Coaxial |
| Crossover: |
1700Hz
|
| Flying Hardware: |
Integrated Multi-function Yoke |

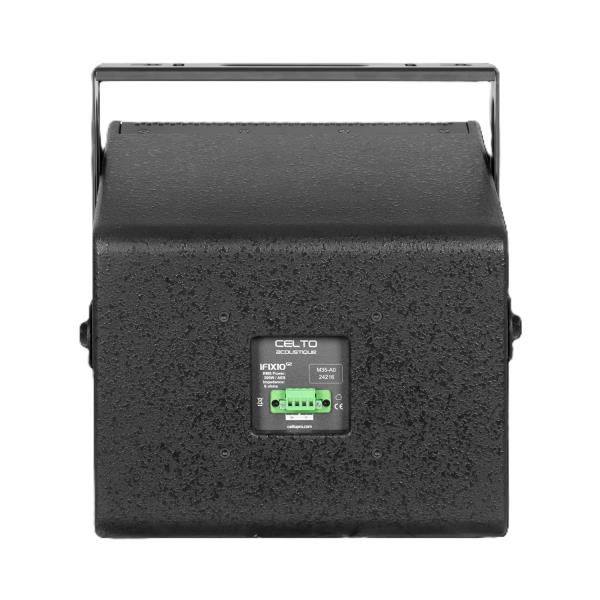

| Connectors: |
Screw Terminal |
| Pole Mount: |
With Optional Adapter |
| Cabinet |
15mm Birch Ply, Painted |
| Net Weight: |
10Kg |
| Gross Weight |
13.8Kg |
| Dimensions (W x D x H): |
300 x 300 x 304mm |
Packaging Dimensions 1pcs/pack:
(W x D x H) |
410 x 380 x 410mm |
| Warranty: |
5 Years |
