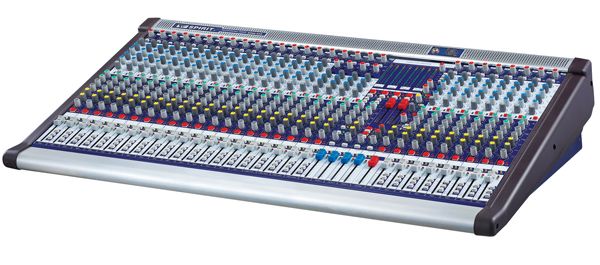

KING-432
32 INPUT PROFESSIONAL MIXING CONSOLE
| Price: | $3,999.00 |
|---|---|
| Currently out of stock. Please enquire | |

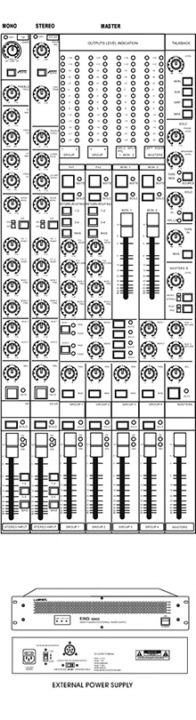

Panel Layout
Features
- Inputs
- 24 mono mic/line inputs with inserts
- 4 stereo line/mono mic inputs
- 4 stereo aux returns
- 1 stereo tape return
- Busses
- 4 subgroups
- 2 aux pre-fader (monitor)
- 2 aux post-fader (effects)
- 2 aux pre/post fader (switchable)
- 2 master
- 1 mono PFL
- 2 stereo AFL
- Outputs
- 4 subgroups with inserts
- 2 aux pre-fader (monitor)
- 2 aux post-fader (effects)
- 2 aux pre/post fader (switchable)
- 2 master A (L & R) with inserts
- 2 master B (L & R) - switchable mono/stereo, pre/post fader
- 1 stereo tape out
- 24 direct outputs on mic/line channels
- 1 stereo headphone
- 1 stereo monitor out
- Other
- Independent +48V phantom power on all input channels with LED indicator
- Input gain trim on all input channels
- 4-band EQ with swept low/mid and mid/high on all mic/line input channels
- 4-band EQ on all stereo input channels
- 80Hz HPF on all input channels
- EQ bypass, mute, solo on all input channels
- Peak (+16dBu) and signal (-16dBu) on all input channels and subgroups
- Pan on all input channels
- Master L & R, subgroups 1 & 2, subgroups 3 & 4 switches on all inputs
- Talkback mic switchable to monitor, aux, subgroup, or master busses (non-latching)
- 14 segment LED meter for Master L & R, Subgroups 1 & 2, Subgroups 3 & 4 and monitor 1 & 2 outputs
- 60mm linear faders with dust guard
- Provision for two 12VDC/5W desk lamps (desk lamps not included)
- Ground Lift switch
Dimensions
Specifications
| Mono Inputs (balanced): | 24 Mic (XLR)/Line (TRS) |
|---|---|
| Stereo/ Line-Mono/ Mic Inputs (balanced): | Stereo 4x2 (TRS)/Line (TRS)/Mic (XLR) |
| Inserts - Mono Inputs (unbalanced): | 24 (TRS) |
| Stereo Aux Returns (balanced): | 4x2 (TRS) |
| Stereo Tape Return (unbalanced): | 2 (RCA) |
|
Subgroups (impedance balanced): |
4 (TRS) |
|
Inserts - Subgroups (unbalanced): |
4 (TRS) |
|
Aux Send Pre-Fader (balanced): |
2 (XLR) |
|
Aux Send Post-Fader (impedance balanced): |
2 (TRS) |
|
Aux Send Pre/Post Fader (balanced): |
2 (XLR) |
| Master A Out (balanced): | 2 (XLR) |
|
Inserts - Master A (unbalanced): |
2 (TRS) |
|
Master B - Switchable Mono/Stereo, Pre/Post(balanced): |
2 (XLR) |
| Tape Out (unbalanced): | 2 (RCA) |
|
Direct Outputs - Mono Inputs (impedance balanced): |
24 (TRS) |
| Stereo Headphones: | 1 (TRS) |
|
Stereo Monitor Out (impedance balanced): |
2 (TRS) |
| Input Impedance - Mic: | 2kΩ |
| Input Impedance - Line: | 20kΩ |
| Input Gain - Mic: | 0dB to +60dB |
|
Input Gain - Line Mono Channel: |
-20dB to +40dB |
|
Input Gain - Line Stereo Channel: |
-20dB to +20dB |
|
Input Gain - Line Level Inputs: |
0dB |
|
Max Input Level - Mic: |
+22dBu |
|
Max Input Level - Line Mono Channel: |
+22dBu |
|
Max Input Level - Line Stereo Channel: |
+28dBu |
|
Line Level Inputs Max Input Level: |
+22dBu |
|
CMRR - Mic (@ 100Hz, gain 40dB): |
Typ. 75dB |
|
CMRR - Mic (@ 1kHz, gain 40dB): |
>85dB |
|
CMRR - Line (@ 1kHz, gain 40dB): |
>45dB |
|
Frequency Response (Mic to Mix, gain 60dB): |
20Hz to 20kHz, +0dB to -1dB |
| Mic EIN (20Hz-20kHz, ref 150Ω, gain 60dB): | -129dBu |
| Summing Noise (20Hz to 20kHz, 16 channels routed with faders down) | -90dBu |
|
Line to Mix Noise (20Hz to 20kHz, 16 channels routed @ 0dB, pan centre): |
-86dBu |
| Distortion - Mic to Insert (@1kHz, gain 30dB, +20dBu output): | Typ. 0.0007% |
| Distortion - Mic to Mix (@1kHz, gain 30dB, +20dBu output): | 0.009% |
| Crosstalk - Channel to Channel (@1kHz): | <-80dB |
| Crosstalk - Mix to Mix (@1kHz): | <-80dB |
| Crosstalk - Channel to Mix (@ 1kHz): | <-80dB |
|
Crosstalk - Fader Attenuation (@ 1kHz): |
>100dB |
|
Crosstalk - Switch Rejection (@ 1kHz): |
>100dB |
|
Output Impedance - All Line Outputs on XLR |
75Ω |
|
Output Impedance - Headphones |
32Ω |
|
Max Output Level - Masters on XLR |
+25dBu |
|
Max Output Level - All Other Outputs on XLR |
+22dBu |
|
Max Output Level - All Outputs on TRS |
+22dBu |
|
Max Output Level - Headphones |
+22dBu/600Ω |
|
Nominal Signal Level - Mic |
-60dBu to 0dBu |
|
Nominal Signal Level - Line |
0dBu |
|
EQ Mono Channel - HPF |
12dB/Oct @80Hz |
|
EQ Mono Channel - |
±15dB (0dB Detent) High Shelf @12kHz ±15dB (0dB Detent) Mid/High - Sweep400Hz to 8kHz with Q 1.4 ±15dB (0dB Detent) Low/Mid -Sweep 100Hz to 2kHz with Q 1.4 ±15dB (0dB Detent) Low Shelf @80Hz |
| EQ Stereo Channel - HPF | 12dB/Oct @ 80Hz |
|
EQ Stereo Channel - |
±15dB (0dB Detent) High Shelf @12kHz ±15dB (0dB Detent) Mid/High @3kHz with Q1.4 ±15dB (0dB Detent) Low/Mid @300Hz with Q1.4 ±15dB (0dB Detent) Low Shelf @80Hz |
|
Phantom Power: |
+48V - Channel Selectable |
|
Desk Lamps (Optional) |
2 x 12V/5W (4 Pin XLR) |
| Power Consumption: | 150W |
| Power Supply: | External 2RU 220V-240VAC 50-60Hz |
| Net Weight: | 24.0kg |
| Gross Weight: | 31.0kg |
| Dimensions (W x D x H): | 930 x 568 x 194mm |
| Dimensions (W x D x H): | 1100 x 650 x 300mm |
| Warranty: | 1 Year |
