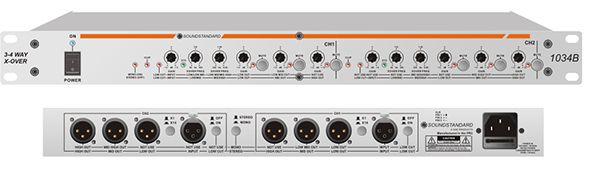

1034B
STEREO 3-WAY MONO 4-WAY ACTIVE CROSSOVER
Installation
Features
- Mode switch for stereo 3-way, or mono 4-way with indicator
- Clip indicators on both channels
- 30Hz 18dB/Oct low cut (high pass) filters with indicators
- Input gain controls on both channels
- Crossover frequency adjust
- x1 or x10 crossover frequency range switches with indicators
- 24dB/Oct crossover filters
- Individual mute switches with indicators
- Individual gain control on all outputs
- Balanced XLR inputs and outputs
Chassis Dimensions
Specifications
| Signal to Noise (A weighted): | >95dB |
|---|---|
| Frequency Response: | 20Hz-20kHz (±0.3dB) |
| THD%: | <0.03% |
| Crossover Frequency Range: | 62Hz-850Hz (x1 or x10) + 620Hz-8.5kHz |
| Dynamic Range: | 118dB |
| Input Gain: | -∞ to +6dB |
| Low Output Gain: | -∞ to +12dB |
|
Mid Output Gain: |
-∞ to +12dB |
| High Output Gain: | -∞ to +12dB |
| Indicator: | Power, Clip, Low Mute, High Mute, Mode, Crossover Frequency Range |
| Input Impedance: | 20kΩ (balanced) 10kΩ (unbalanced) |
| Output Impedance: | 300Ω (balanced) 150Ω (unbalanced) |
| Input Connectors: | 2 (XLR) |
| Output Connectors: | 6 (XLR) |
|
Power Consumption: |
10W |
| Power (External Plug Pack): | AC 2x18V 500mA |
|
Net Weight: |
2.5kg |
|
Gross Weight: |
3.7kg |
| Dimensions (W x D x H): | 483 x 115 x 44.5mm (1RU) |
| Packaging Dimensions (W x D x H): | 635 x 205 x 75mm |
| Warranty: | 5 Years |
