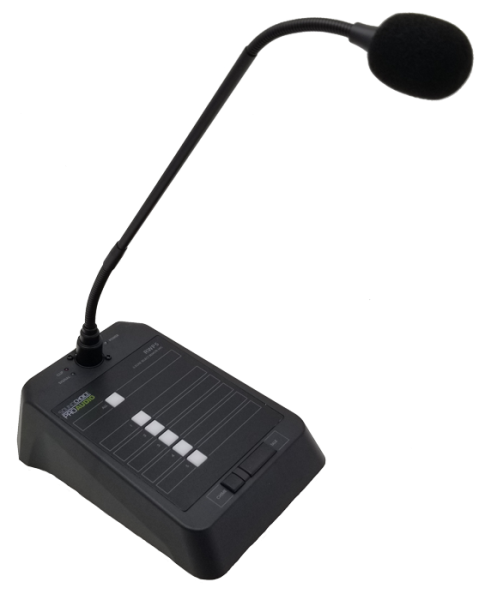

RWP-5 MA360M & MA120M Paging Station
5-ZONE PAGING MICROPHONE STATION - TO MATCH MA SERIES
Installation
Features
- To suit MA Series Mixer Amplifier.
- Built in phantom power for condenser microphone with XLR jack.
- Wide range input level
- Locking switch
- Easy installation one UPT CAT-5 cable for all of controls and power
- Max 100m cable length
- Up to 5 individual zone with pre-announcement chime
- 12" gooseneck microphone supplied
- Rear panel volume
- Maximum of 1 paging station can be connected together
- Once the RWP-5 is connected, power cycle MA to find device
- Max distance for continuous cat5 run is 100m
Cabinet Dimensions
Specifications
| Sensitivity: | -60 / -3dB 600ohm |
|---|---|
| SN Ratio: |
>90dB |
| Frequency Response: | 45Hz - 15kHzz |
| Net Weight: | 1.0kg |
| Gross Weight: | 1.6kg |
| Dimensions (W x D x H): | 140 x 205 x 60mm |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
350 x 215 x 100mm |
| Warranty: | 1 Year |
