ACS10 (M+P)

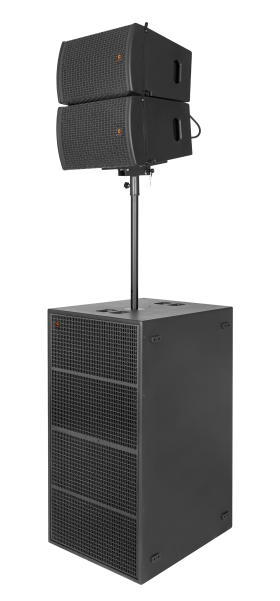

UTLRA-COMPACT LINE SOURCE SPEAKER ACS10M MASTER WITH DSP ASC10P SLAVE
| Price: | $5,500.00 |
|---|---|
| Currently out of stock. Please enquire | |
| Next shipment: | 31 December 2025 |
Features
- Patented IsoTop™ waveguide for precise horizontal and vertical coverage
- All-Neodymium drivers ensure lightweight,high-output performance
- Integrated rigging for fast, secure deployment
- Up to 6 cabinets per array with 10 time safety
- Active PFC + SMPS power supply
- Class D amplifier with DSP processing for protection and audio optimization

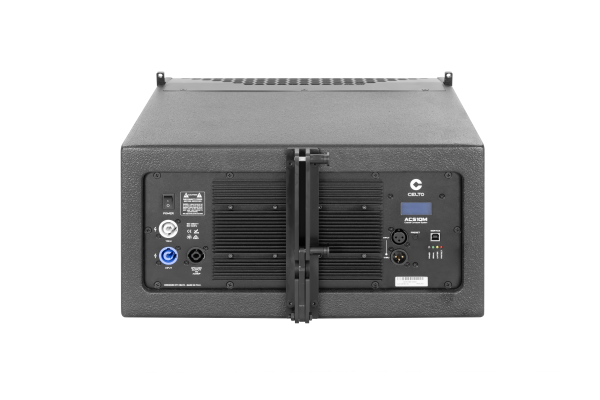

- ACS10M can power one ACS10P directly via SpeakOn connection
Cabinet Dimensions
Specifications
| Speaker Type: | Self-powered Coaxial Line Source System |
|---|---|
| Power Handling (AES standard): | 1550W RMS |
| Nominal Impedance: | 8 ohms |
| Average Sensitivity: | 136dB |
| Maximum SPL Calculated: | 136dB/ 136dB Peak |
| Frequency Response (-6dB with preset): | 95 - 22000Hz |
| Nominal Directivity (-6dB): | 100° H Vertical dependent on array |
| Cabinet Material: | Baltic Birch Plywood |
| Cabinet Finish: | Touring grade Rubberized PolyUrea coating |
| Flying hardware: | Fully Integrated, Cable Free Rigging, 0° / 5° / ° angles |
| Mounting Hardware: | ACS10-CB or ACS10-MA (optional) |
| LF Driver: | 10” LF with 3” PI grade VC |
| Woofer Chassis: | Die Cast Aluminum |
| Woofer Voice Coil: | 3" / 75mm |
| HF Driver: | CELTO Acoustique ACDN44 |
| HF RMS Power (AES Standard): |
800W above 1.2kHz |
| HF Exist: | 1" / 25mm |
| HF Voice Coil Diameter: | 1.7" / 44mm Silver Wire Loaded |
| HF Diaphragm: | VC Annular |
| Power Output: |
LF: 3000W Peak / 1500W RMS (total for Master + Passive cabinets) HF: 1600W Peak / 800W RMS (total for Master + Passive cabinets) |
| DSP: |
Crossover, EQ, Phase and Limiter |
| Dimensions (W x D x H): | 450 x 280x 395mm per speaker |
| Net Weight: |
16Kg |
| Packaging Dimensions 2pcs/pack: (W x D x H) |
695 x 500 x 580mm |
| Gross Weight: | 37.5Kg |
| Warranty: | 5 Years |
| Accessories: |
ACS10-MA (35mm pole mount adapter for ACS10) ACS10-CB (Compact crossbow flying frame for ACS10) ACS10-RC (Road Case fits one ACS10M + one ACS10P) ACS10-ZBag (Padded cover bag for ACS10) CPC-70 (Pole With Crank) |
