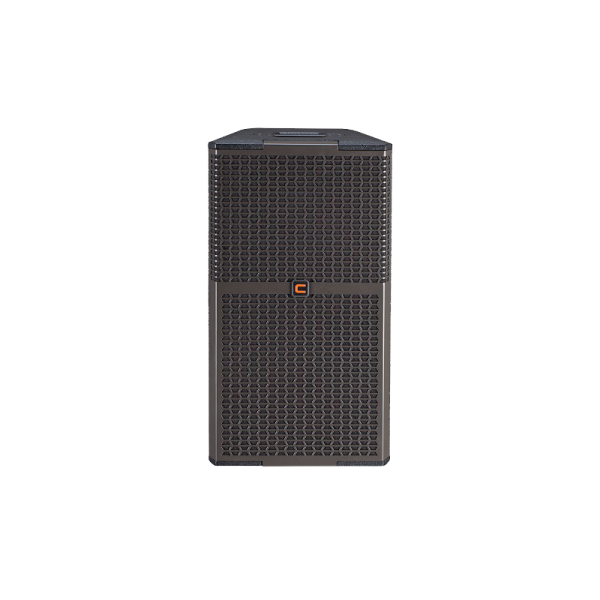

PM12G2
12" PREMIUM INSTALL SPEAKERS
Installation
Features
- Real 500W RMS power capacity
- Natural sound and incredible holographic reproduction
- Optimized for smooth frequency response in and out axis
- Transmission Line Technology
- Premium custom made CELTO Acoustique Drivers
- Proprietary 80ºx50º rotatable Elliptic horn
- Birch plywood cabinet with tongue & groove assembly
- Textured Waterborne Black Coating
Cabinet Dimensions
Specifications
| Speaker Type: | Multi-Purpose Full Range |
|---|---|
| Power Handling (AES standard): | 500W RMS |
| Nominal Impedance: | 8 ohms |
| Average Sensitivity: | 97dB 1W- 1M |
| Maximum SPL Calculated: | 124dB/ 130dB Peak |
| Frequency Response (-6dB half space, no EQ) : | 40 - 22000Hz |
| Nominal Directivity (-6dB): | 80° x 50° |
| Cabinet Material: | Baltic Birch Plywood |
| Cabinet Finish: |
Textured Waterborne Black Coating. Acoustic PU Foam behind Front Grill |
| Floor Monitor: |
No |
| Flying hardware: |
16 x M8 Points |
| Mounting Hardware: | 35mmSocket 0° - 10° |
| LF Driver: | 12" Coaxial CELTO Acoustique 12MB405 |
| Woofer Chassis: | Die Cast Aluminum |
| Woofer Voice Coil: | 3" / 75mm |
| HF Driver: | CELTO Acoustique ACD40 |
| HF RMS Power (AES Standard): |
80W above 1.5kHz |
| HF Exist: | 1" / 25mm |
| HF Voice Coil Diameter: | 1.7" / 44mm |
| HF Diaphragm: | HSP Annular |
| Crossover: | 1.5kHz 2-way Passive Network |
| Connector: |
Neutrik 2 x Speakon NL4MP (Input 2+ & 2- Thur 1+ & 1-) |
| Dimensions (W x D x H): | 620 x 348 x 405mm |
| Net Weight: |
24Kg |
| Packaging Dimensions 1pcs/pack: (W x D x H) |
720 x 450 x 515mm |
| Gross Weight: | 29Kg |
| Warranty: | 5 Years |
| Accessories: |
PM12G2-Yoke (Yoke Bracket) CPC-70 (Pole With Crank) KTV-BRKT1 (Ceiling Mount Bracket WMBRKT60 (Wall Mount Bracket) |
