R4/R8B
600W POWERED COMPACT LINE ARRAY SYSTEM (BLACK)
Installation

Features
- Each system comes complete with subwoofer, 4 mid-high line array cabinets, internal power amplification, DSP control, all rigging hardware and connecting speaker cables
- Compact design for medium scale sound reinforcement
- Internal amplification, and programmable DSP control (via USB and RS232 port) - gain, crossover, equalisation, compressor/limiter, and time alignment. Software included
- Rear panel peak level indicator, level control
- Two 8" low frequency drivers (R8 active amplification module)
- Two 4" mid frequency drivers and one high frequency ribbon driver in each R4 line array module
- 120º controlled horizontal coverage
- Splay angle adjustable in 1º steps
- XLR line input with XLR "loop through"

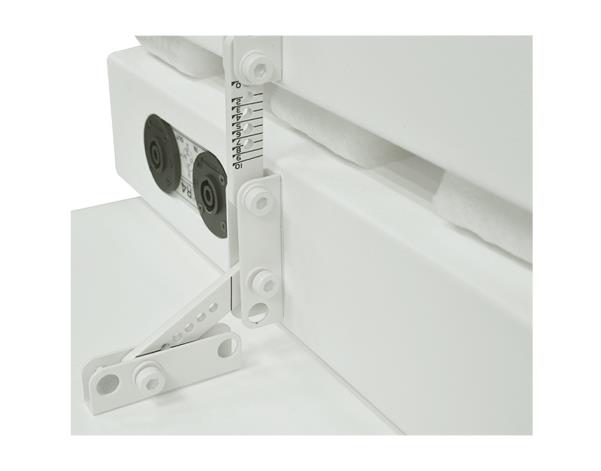

- Mechanically connected cabinet design with three-point suspension system allowing flexibility in a variety of array configurations
Cabinet Dimensions

Specifications
Transducers: | R8 Low Frequency: 2x8" Drivers R4 Mid Frequency: 4x(2x4") Drivers R4 High Frequency: 4xRibbon Drivers |
---|---|
Frequency Response (-3dB): | 65Hz-40kHz |
Dispersion (H x V): | 120º x (30º-90º) adjustable |
Internal Amplifier Rated Power (RMS): | R8 (L): 300W; R4 (M/H): 4x75W |
Rated SPL (1m): | 115dB |
Max SPL (1m): | 121dB |
Line Input Sensitivity: | 0.5V |
Input Impedance: |
10kΩ |
Input Connector: | XLR female with XLR male "loop through" |
Speaker Connectors: | NL4 |
Power Supply: |
230VAC 50Hz-60Hz |
Net Weight: | 45.0kg |
Gross Weight: | 50.0kg |
Dimensions (W x D x H): | L: 492 x 608 x 336mm; M: 492 x 250 x 542mm |
Packaging Dimensions 1pcs/pack: (W x D x H) |
710 x 705 x 580mm |
Warranty: | 5 Years |
